Shouldered Hex Flange Bolt

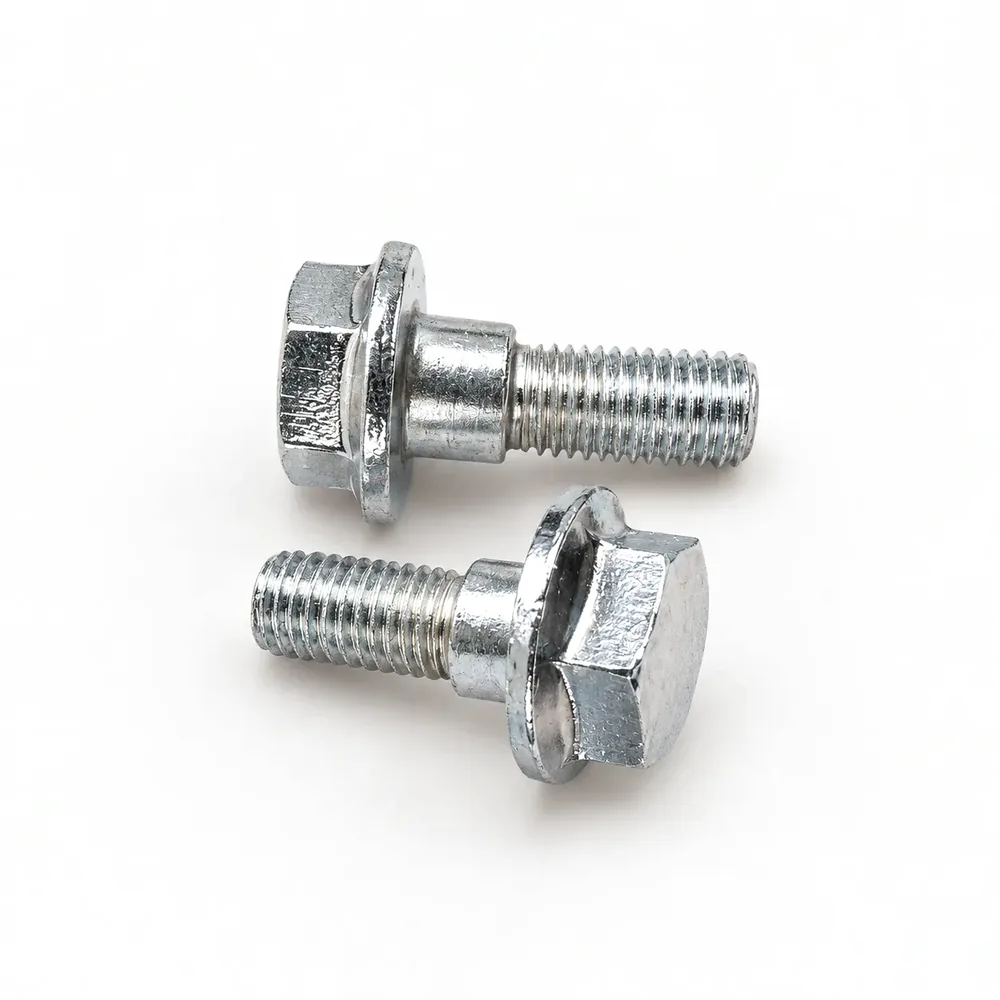

The unthreaded shoulder of this hex flange bolt locates mating parts precisely and acts as a pivot or spacer surface, while the threaded section provides the clamping force.

Head: Hex flange
Shank: Plain shoulder + thread
Finish: Bright zinc

Sizes, grades and finishes are made to order. Share your requirement for a quote.

What is a shouldered hex flange bolt?

A shouldered hex flange bolt has a smooth, unthreaded section between the flange and the thread. That shoulder gives a precise diameter for a part to sit or pivot on, and stops the thread from cutting into the component it passes through.

Typical uses

Pivot points and linkages
Brackets that need accurate location
Spacers built into the bolt

Shouldered Hex Flange Bolt FAQ

What does the shoulder do?

It locates the mating part on a smooth diameter and can act as a pivot or spacer, while the threaded end provides the clamping force.

Can the shoulder length be made to my drawing?

Yes. Shoulder length and diameter are made to the customer drawing, using cold heading and machining in our Lahore plant.

How do I get a price?

Prices depend on size, finish and quantity. Send the part name, size, finish and quantity on WhatsApp or through the contact form, and our team will reply with a quotation.

Overview

Flange bolt with a plain shoulder below the head for accurate location.

Zinc Plated
Shouldered

Made in-house

Produced through our own cold heading, thread rolling, CNC machining and plating departments, then checked by our inspection and quality control team before dispatch.
