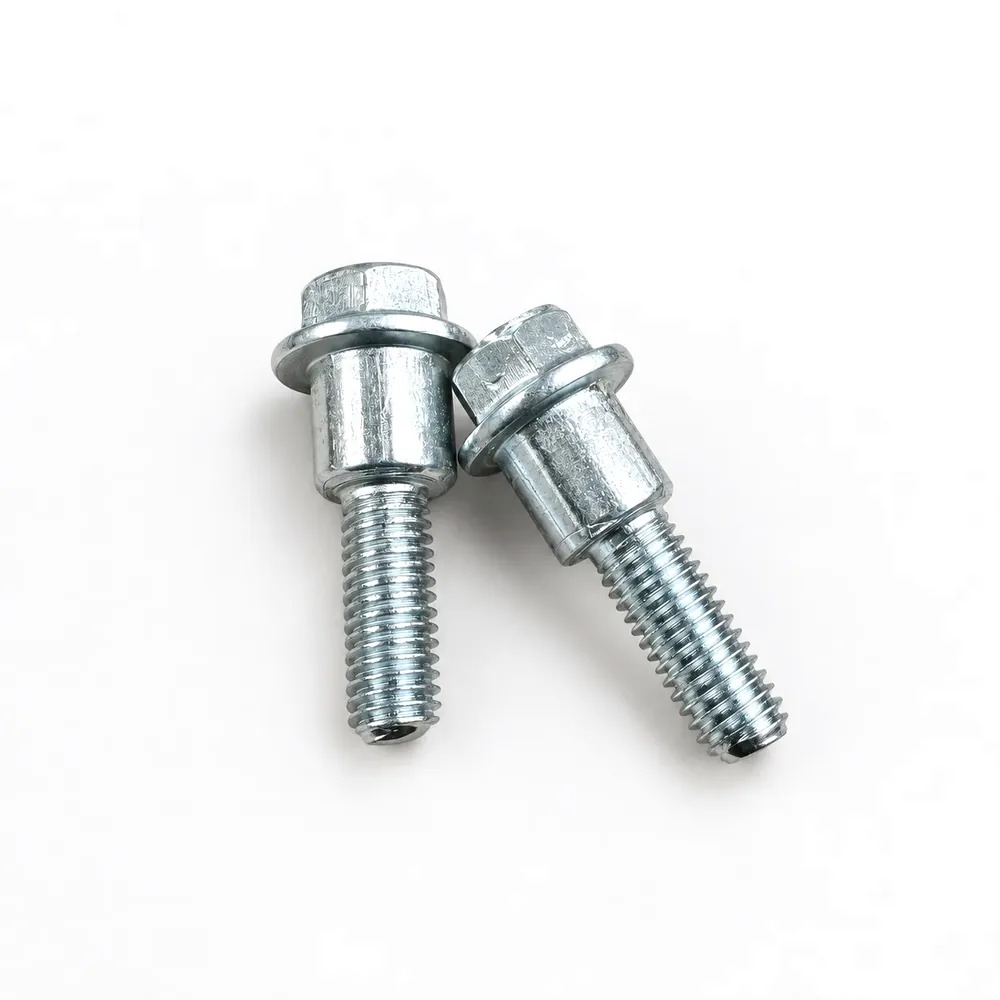

Stepped Shank Flange Bolt

A flange bolt with a larger-diameter step below the head, used where a component needs to be held at a set distance or located on a precise diameter.

Head: Hex flange
Shank: Stepped
Finish: Galvanized

Sizes, grades and finishes are made to order. Share your requirement for a quote.

What is a stepped shank flange bolt?

A stepped shank flange bolt has a larger-diameter step below the flange before the thread begins. The step holds a component at a fixed distance or locates it on an exact diameter, combining a bolt and a spacer in one part.

Typical uses

Mounting parts at a set height
Locating covers and guards
Replacing a bolt and separate spacer

Stepped Shank Flange Bolt FAQ

Why use a stepped bolt instead of a spacer?

One part replaces two, so assembly is quicker and the spacer cannot go missing or be fitted the wrong way round.

Which finish do these come in?

They are commonly supplied galvanized; clear and yellow zinc are also available from our plating plant.

How do I get a price?

Prices depend on size, finish and quantity. Send the part name, size, finish and quantity on WhatsApp or through the contact form, and our team will reply with a quotation.

Overview

Flange bolt with a stepped shank for spacing and location.

Galvanized
Stepped Shank

Made in-house

Produced through our own cold heading, thread rolling, CNC machining and plating departments, then checked by our inspection and quality control team before dispatch.
